MÜLLER MS-A Power Packs
(Tier 2 / Tier 3 Engines)

The MÜLLER MS-A series hydraulic power packs are robust diesel-powered units designed to operate MÜLLER vibratory hammers and foundation equipment in demanding construction environments. These units utilize Tier 2 and Tier 3 diesel engines and provide reliable hydraulic flow and pressure for efficient pile driving and extraction operations.

Built with heavy-duty hydraulic components and large cooling systems, the MS-A power units are engineered for continuous jobsite operation. Equipped with full wireless remote-control capability, operators can safely control hammer functions and engine parameters from a distance while maintaining optimal performance. Available in multiple power configurations, these units are well suited for operating both excavator-mounted and free-hanging vibratory hammer systems.

Key Features

  • Tier 2 / Tier 3 diesel engine options
  • High hydraulic flow and pressure for vibratory hammer applications
  • Full wireless remote-control capability for safe operation
  • Heavy-duty cooling systems for continuous pile driving
  • Available in multiple power ranges to match various Müller hammers
  • Durable industrial design for demanding construction environments

Specification

MS-A 280 V

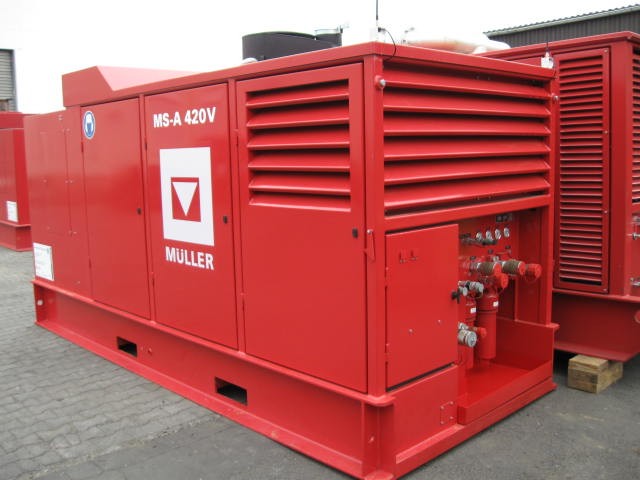

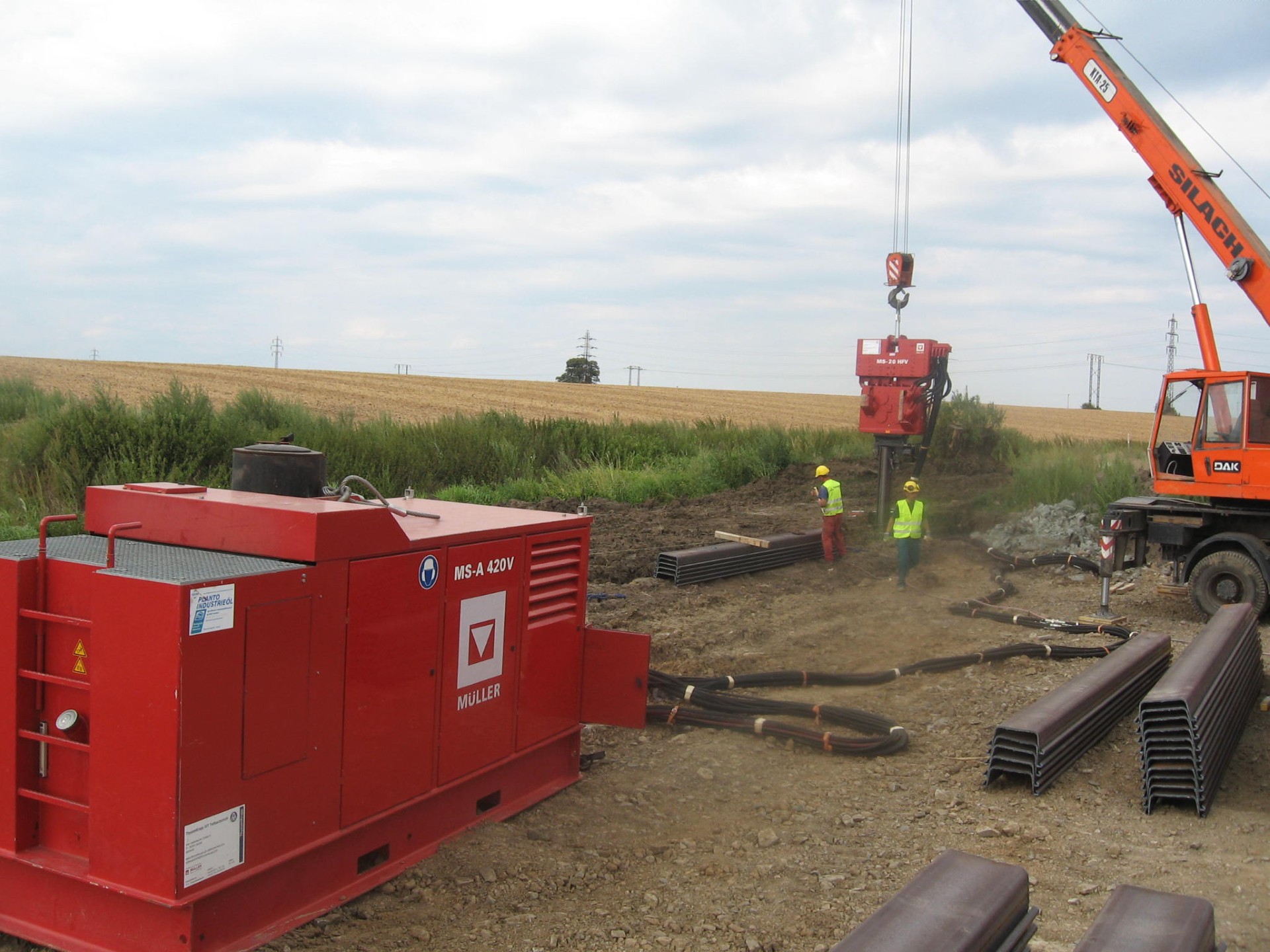

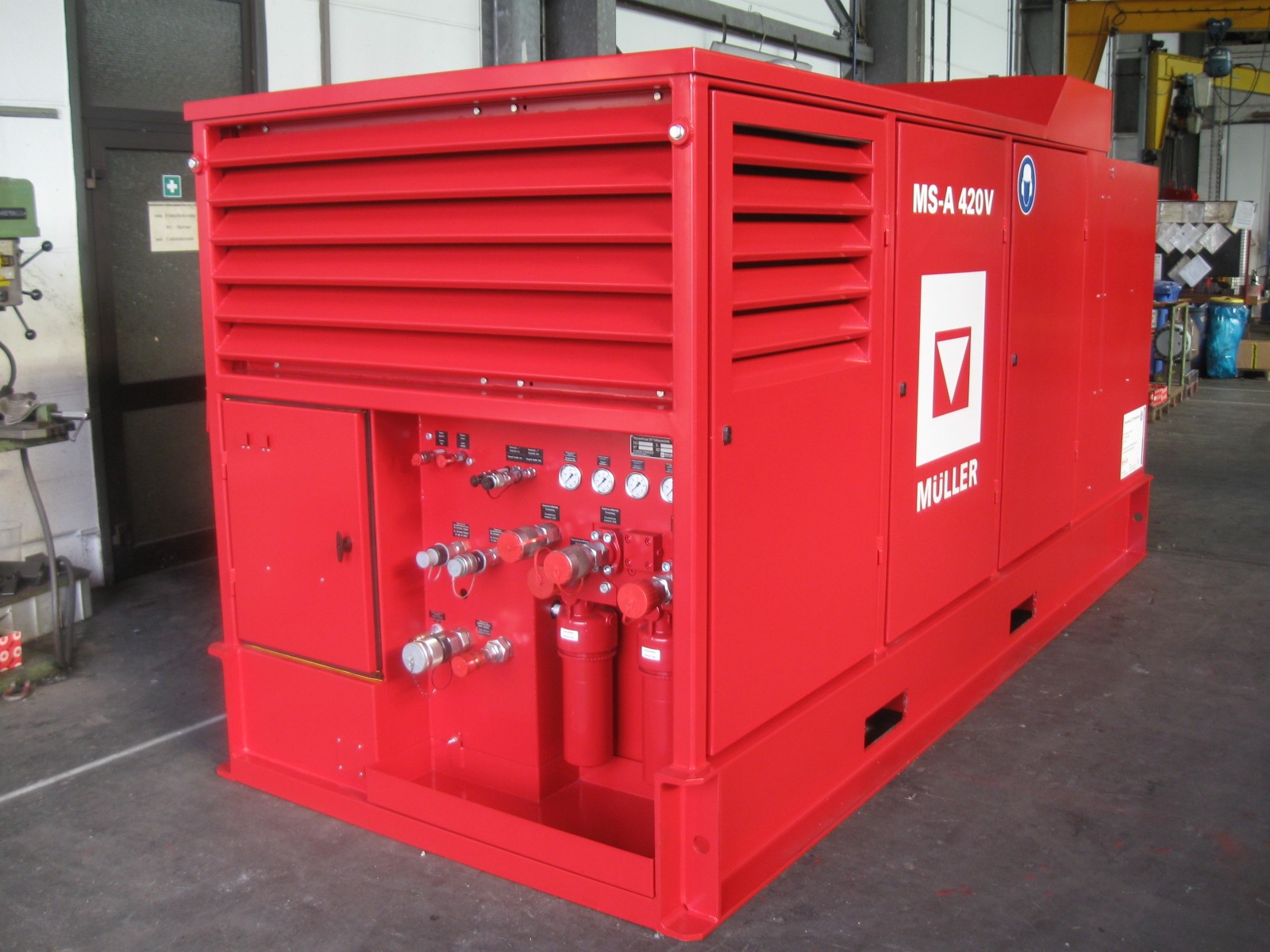

MS-A 420 V

MS-A 570 V

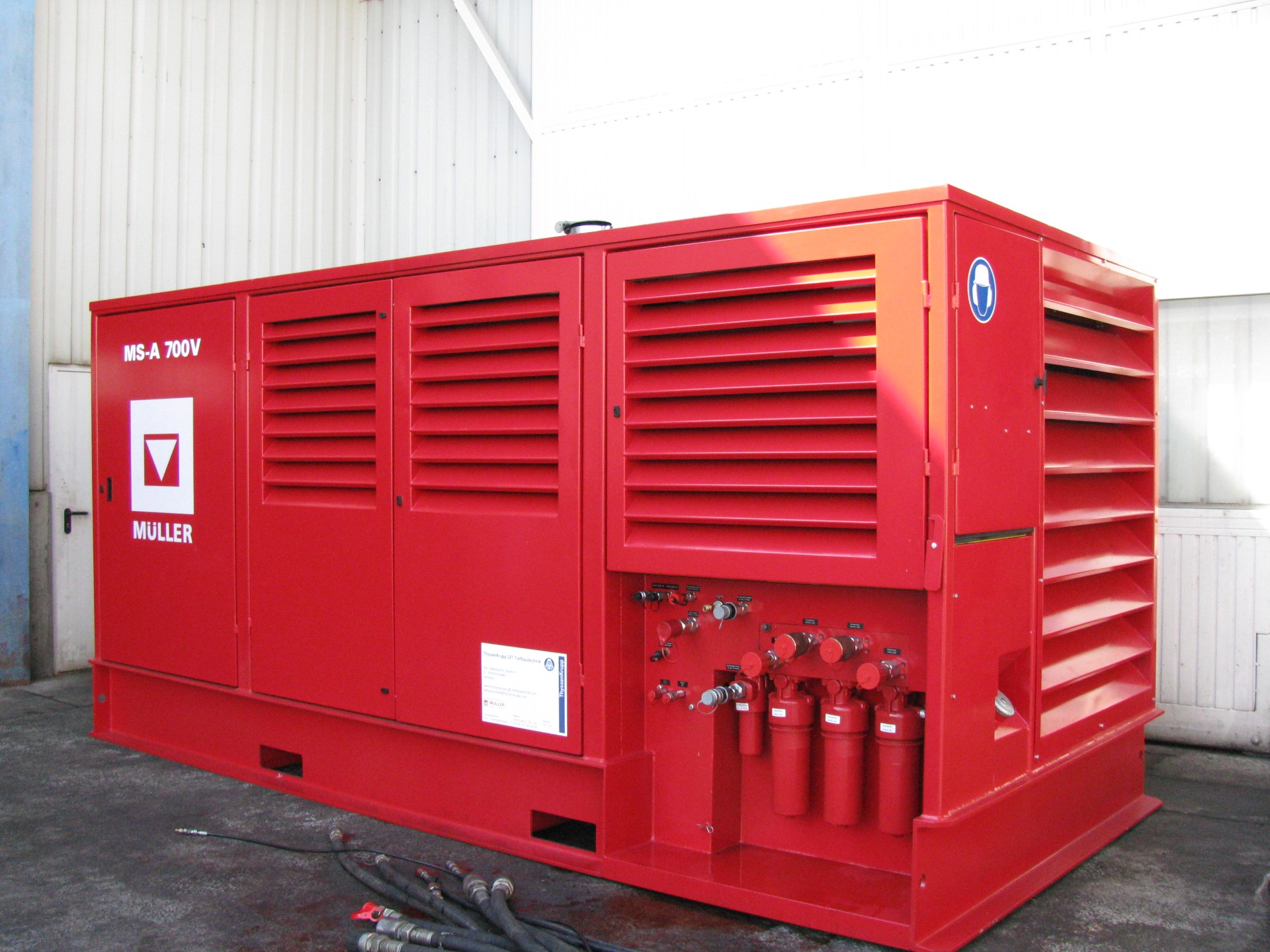

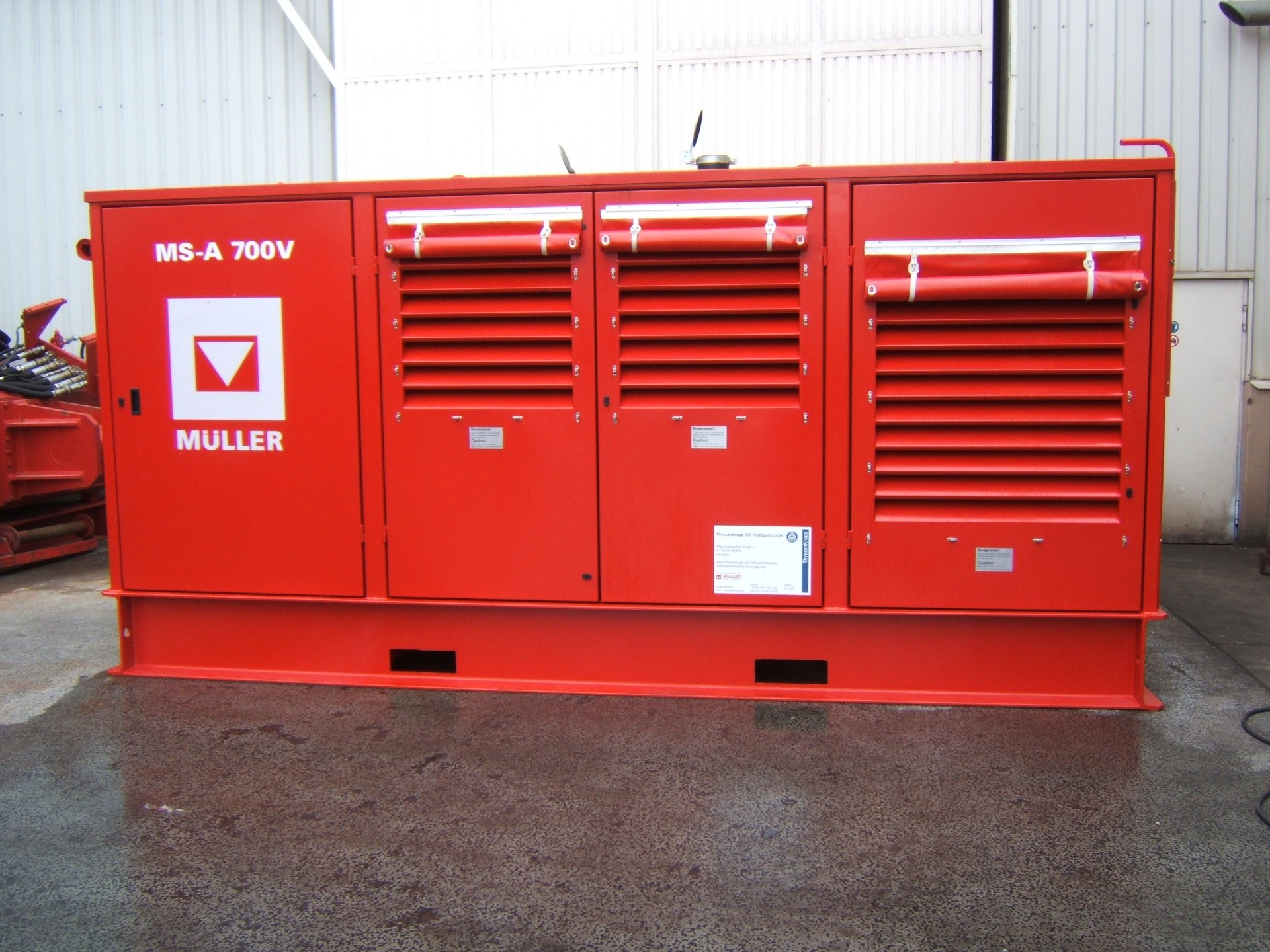

MS-A 700 V

MS-A 840 V

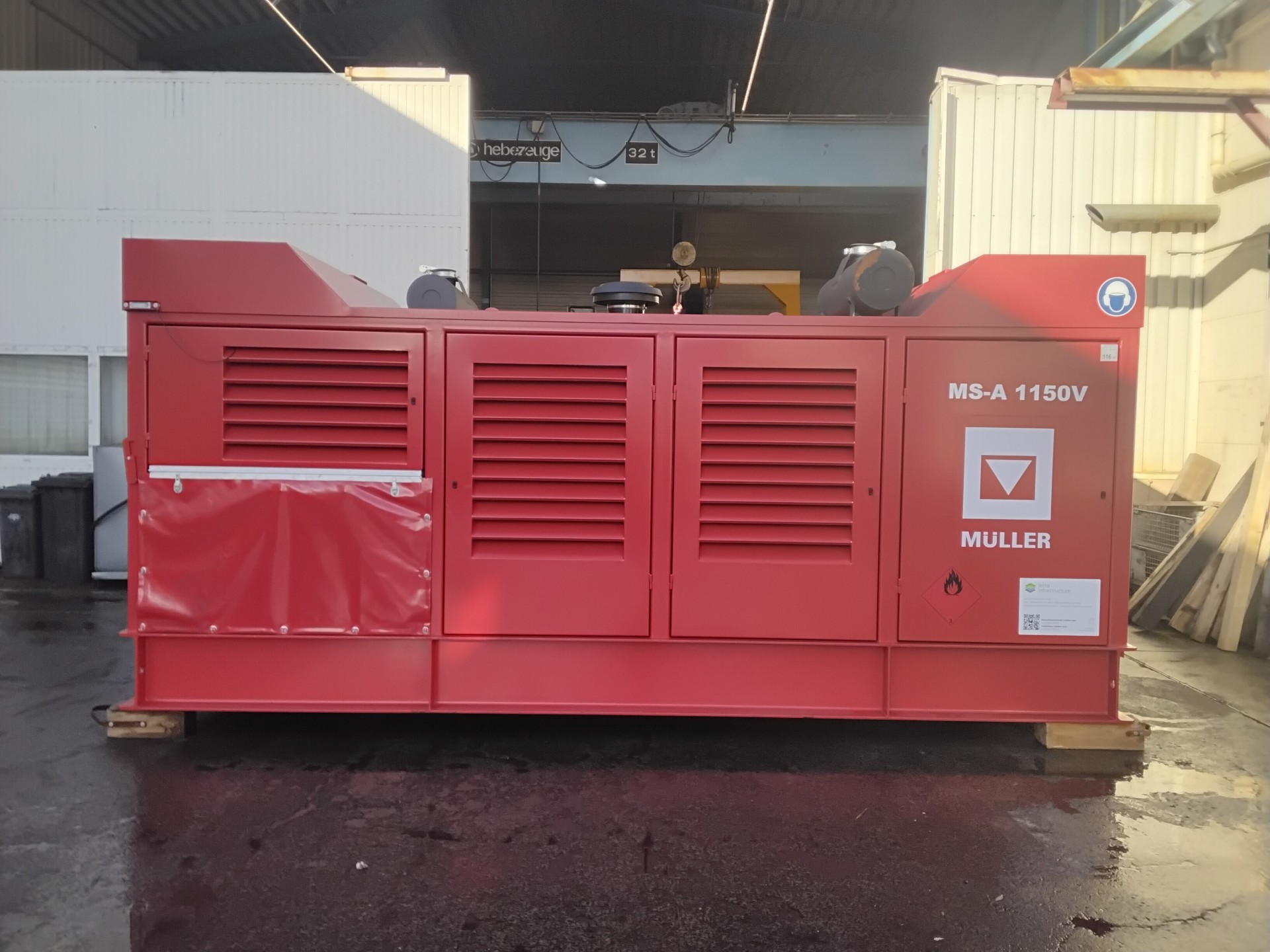

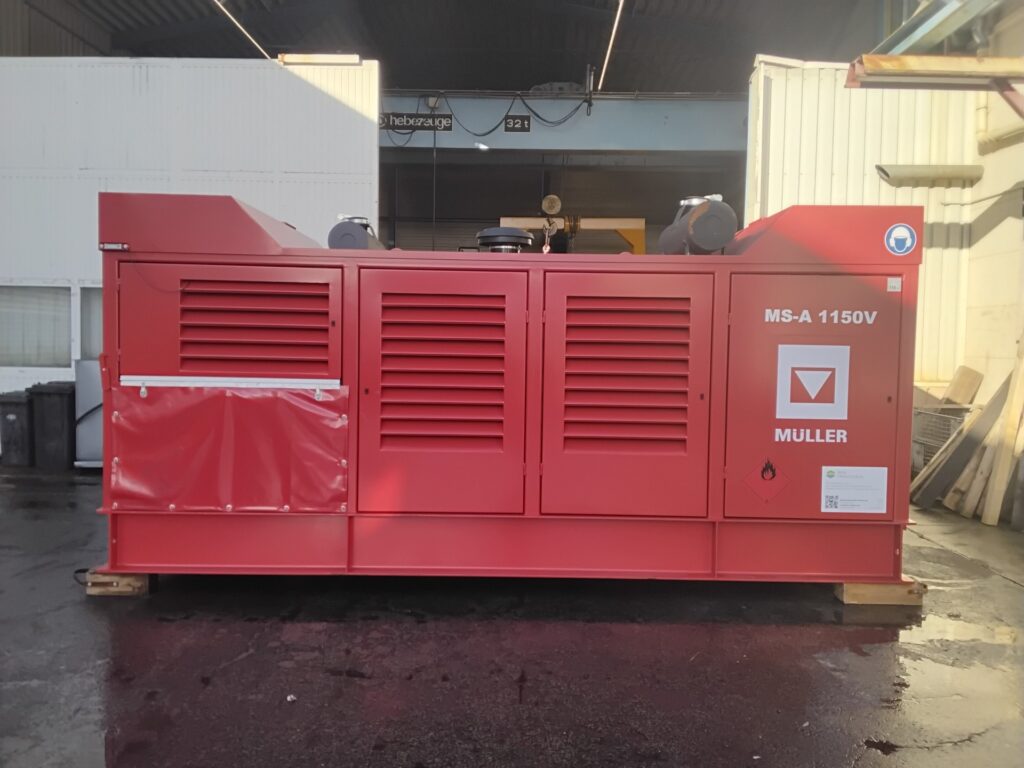

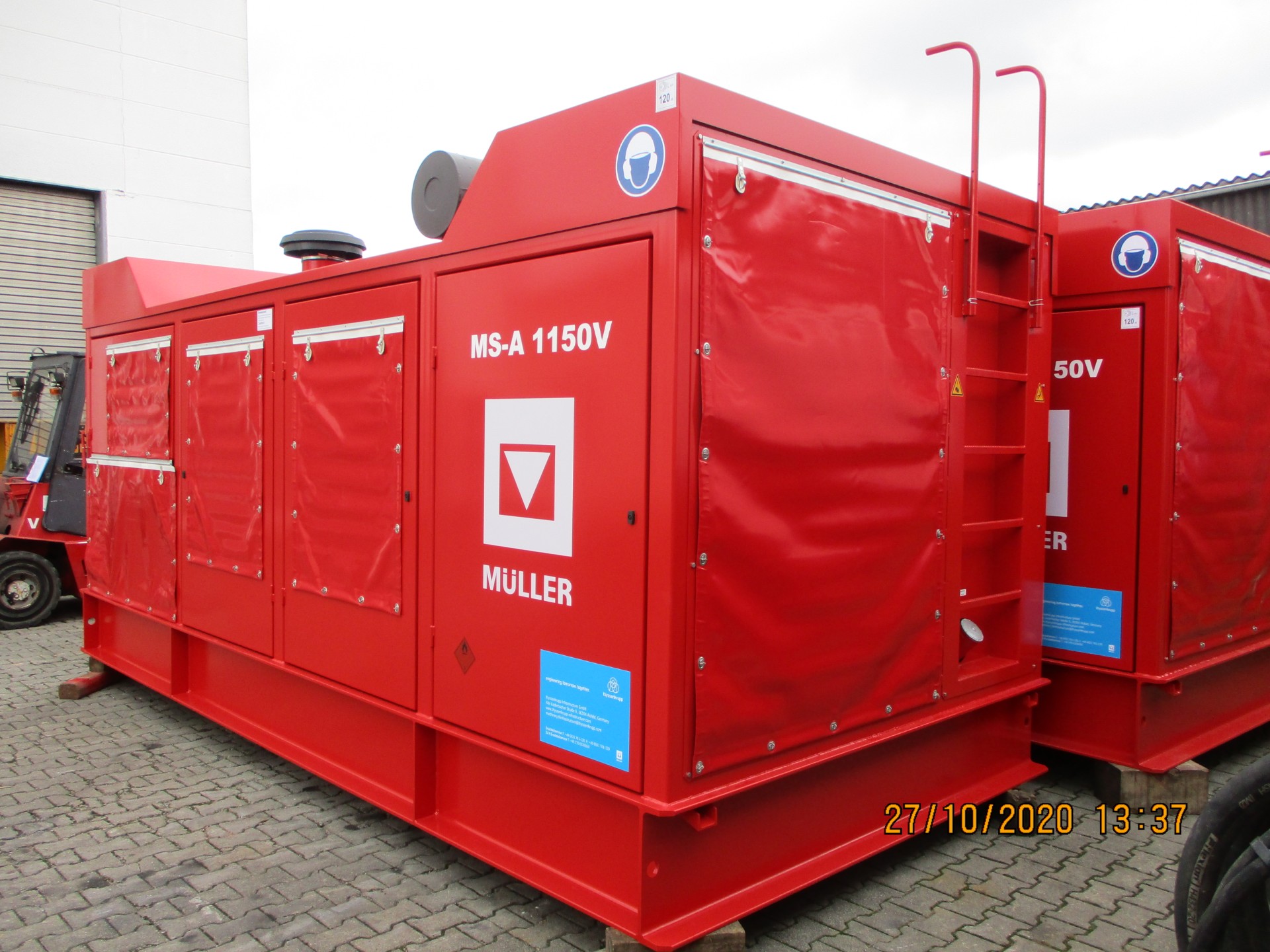

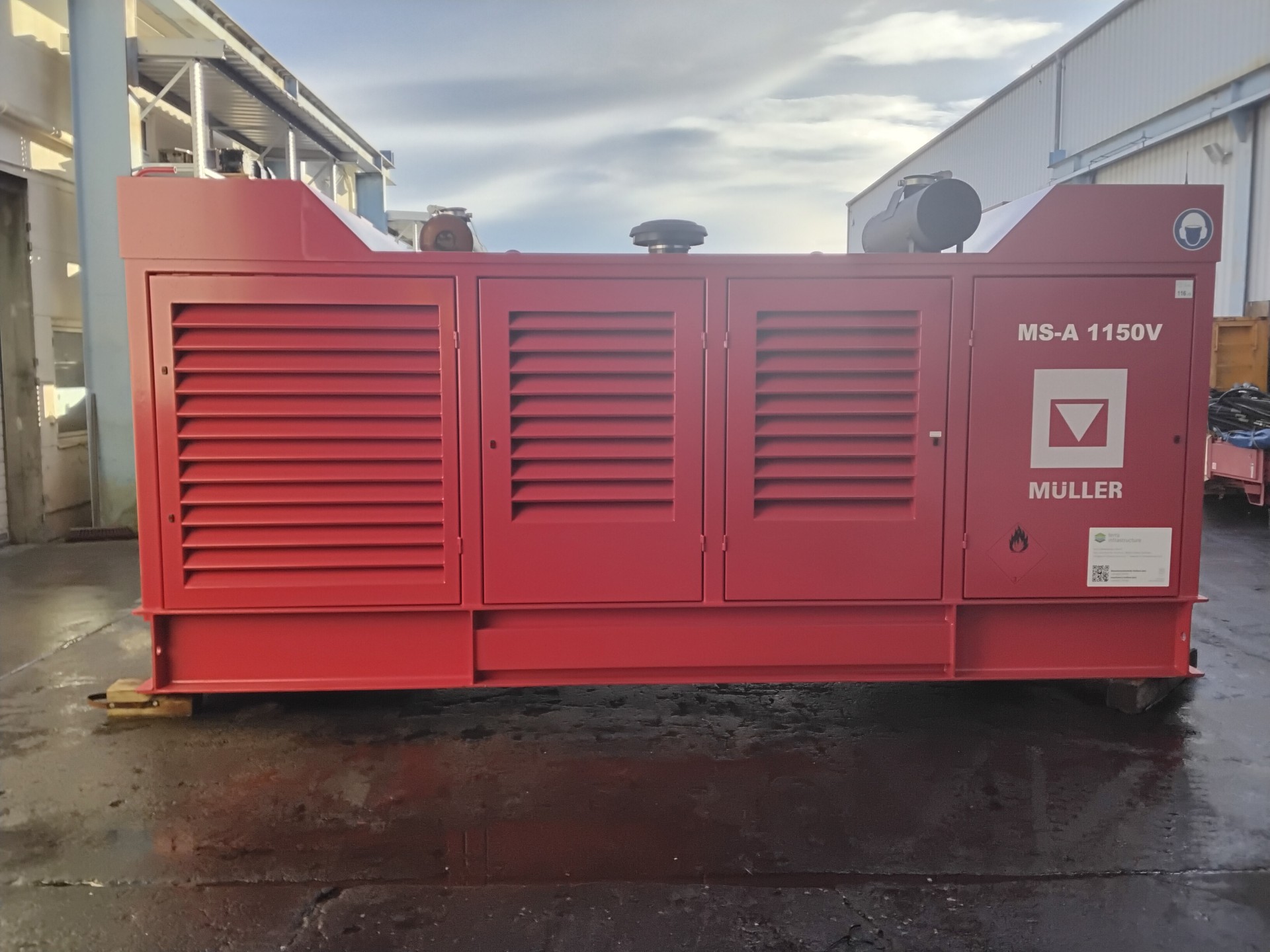

MS-A 1150 V

Diesel Engine

CAT

CAT

Volvo Penta

CAT

CAT

Volvo Penta

Engine Type

C 9.3B LRC

C 15

TAD 1643 VE

2x C 13

2x C 15

2x TAD 1643 VE

Power (HP)

375.5

580.7

757.7

949.4

1161.3

1515.3

Engine Speed (RPM)

2200

2000

1850

2100

2000

1850

Oil Flow (GPM)

138.7

195.5

277.4

311.7

391

554.8

Operating Pressure (PSI)

5511

5511

5511

5511

5511

5511

Fuel Tank (gal)

198.1

237.8

277.4

369.8

581.2

581.2

Hydraulic Tank (gal)

60.8

74

116.2

132.1

158.5

158.5

Weight (US tons)

5.84

6.83

9.37

11.35

13.78

15.21

Length (in)

155.5

167.3

187

189

208.7

208.7

Width (in)

58.3

66.9

78.7

86.6

94.5

94.5

Height (in)

94.5

96.5

93.3

96.5

101.2

102.2
