MS HFBV SG / SGX Side Grip Vibratory Hammers
(Variable Moment)

The MÜLLER MS HFBV SG series side grip vibratory hammers are advanced excavator-mounted piling attachments designed for efficient sheet pile installation with reduced vibration during start-up and shutdown. Featuring a variable eccentric moment vibration system, these hammers allow operators to gradually increase vibration force, minimizing ground disturbance and improving control when working near sensitive structures or in urban environments.

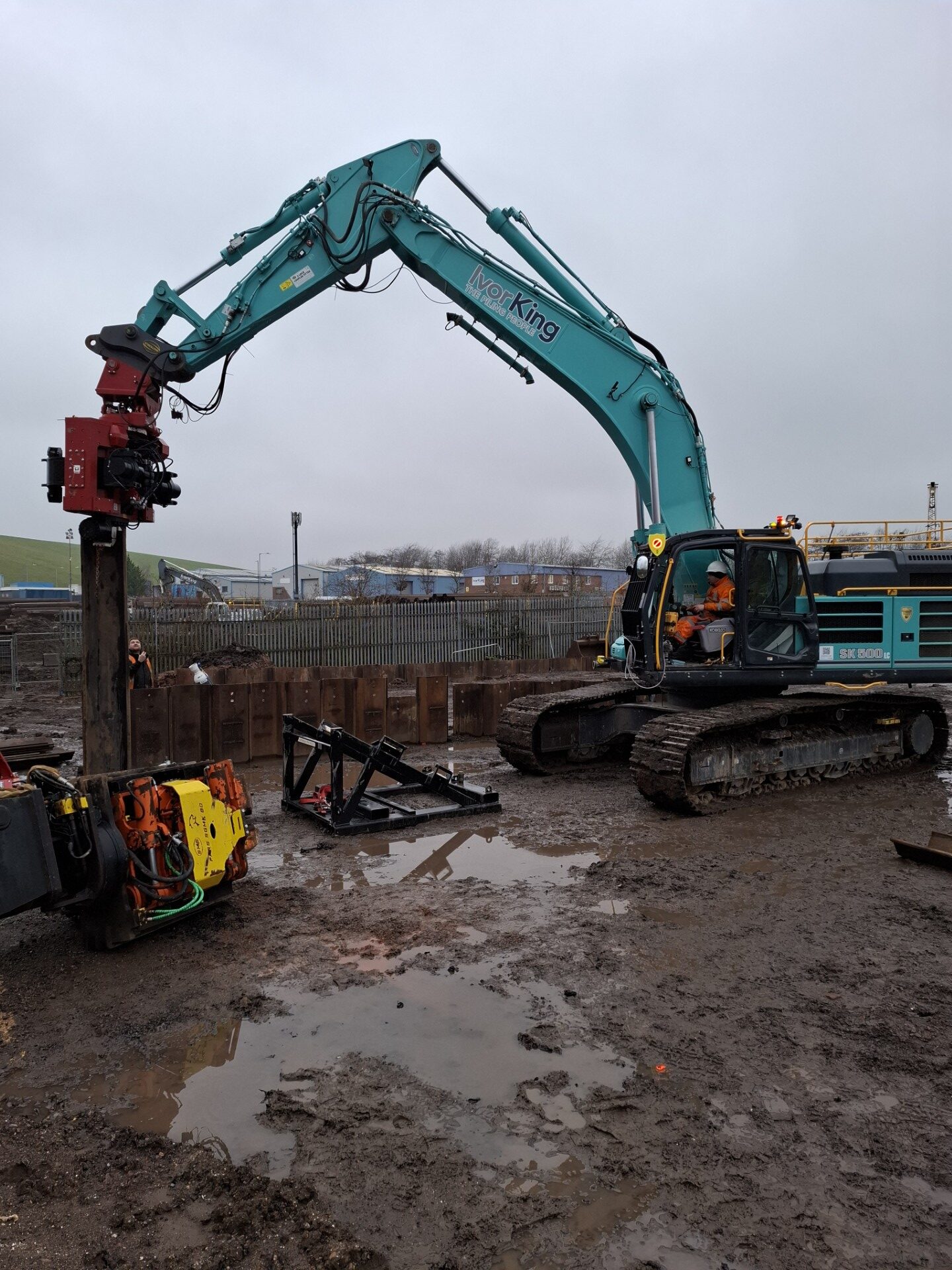

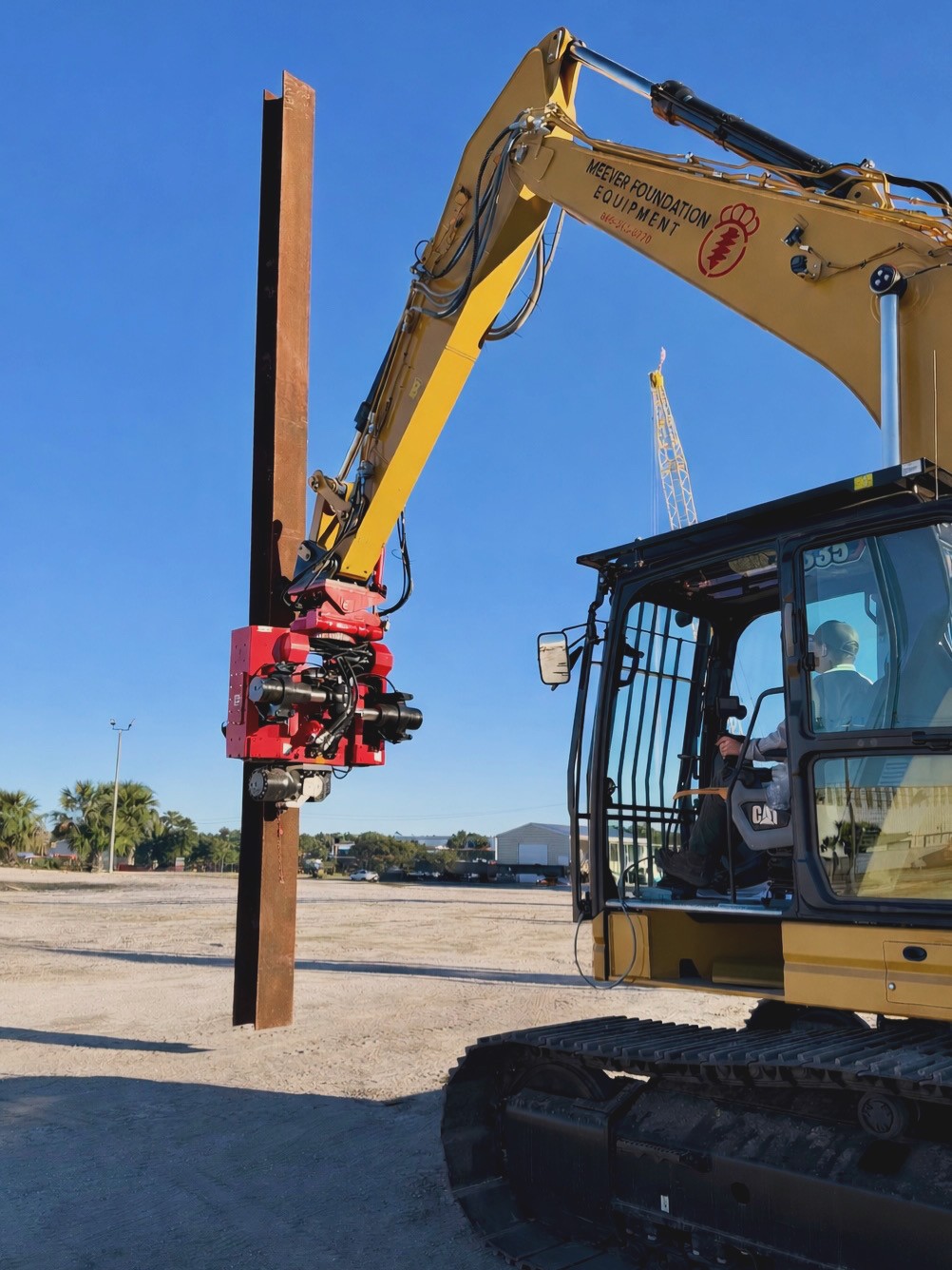

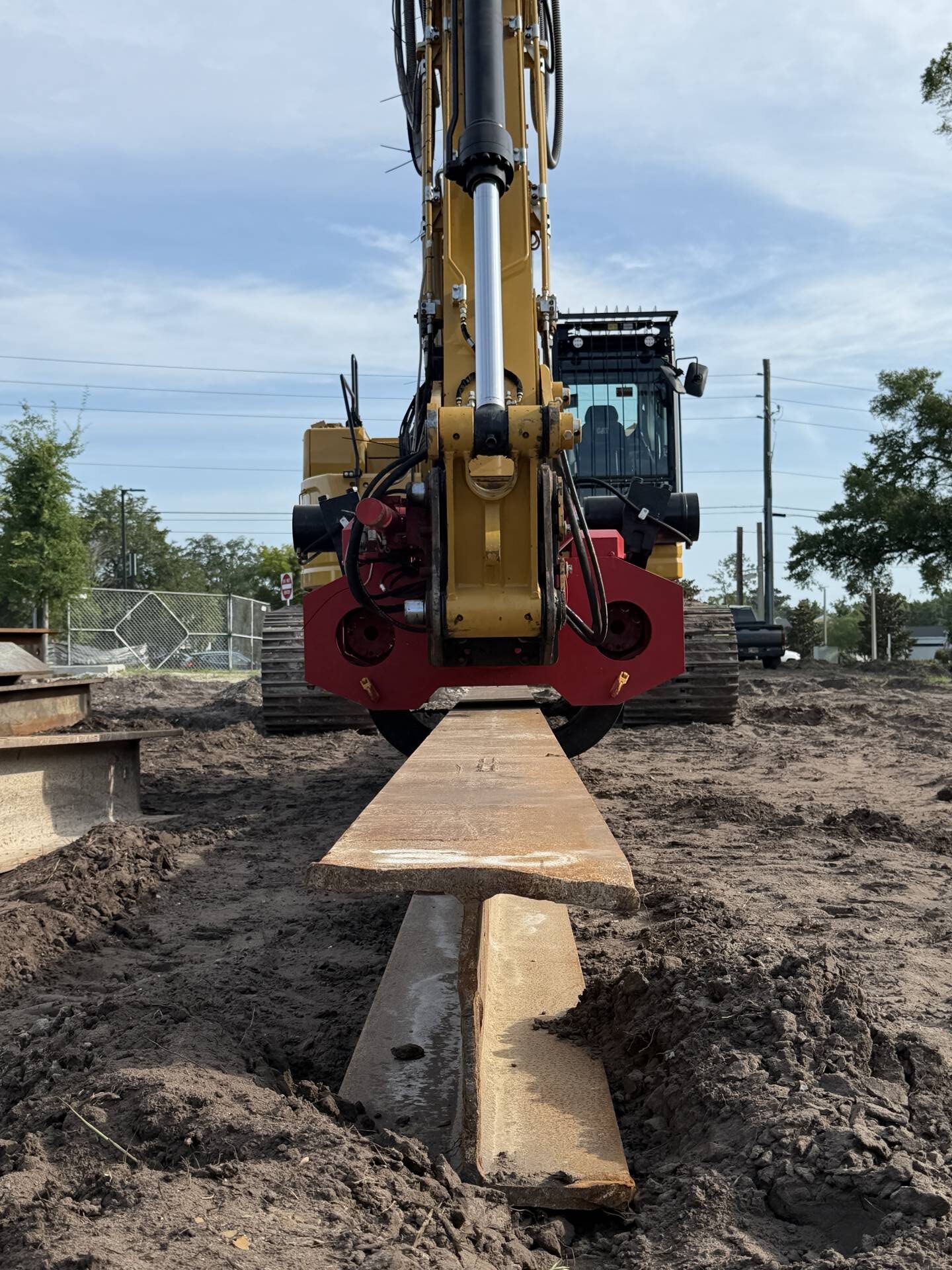

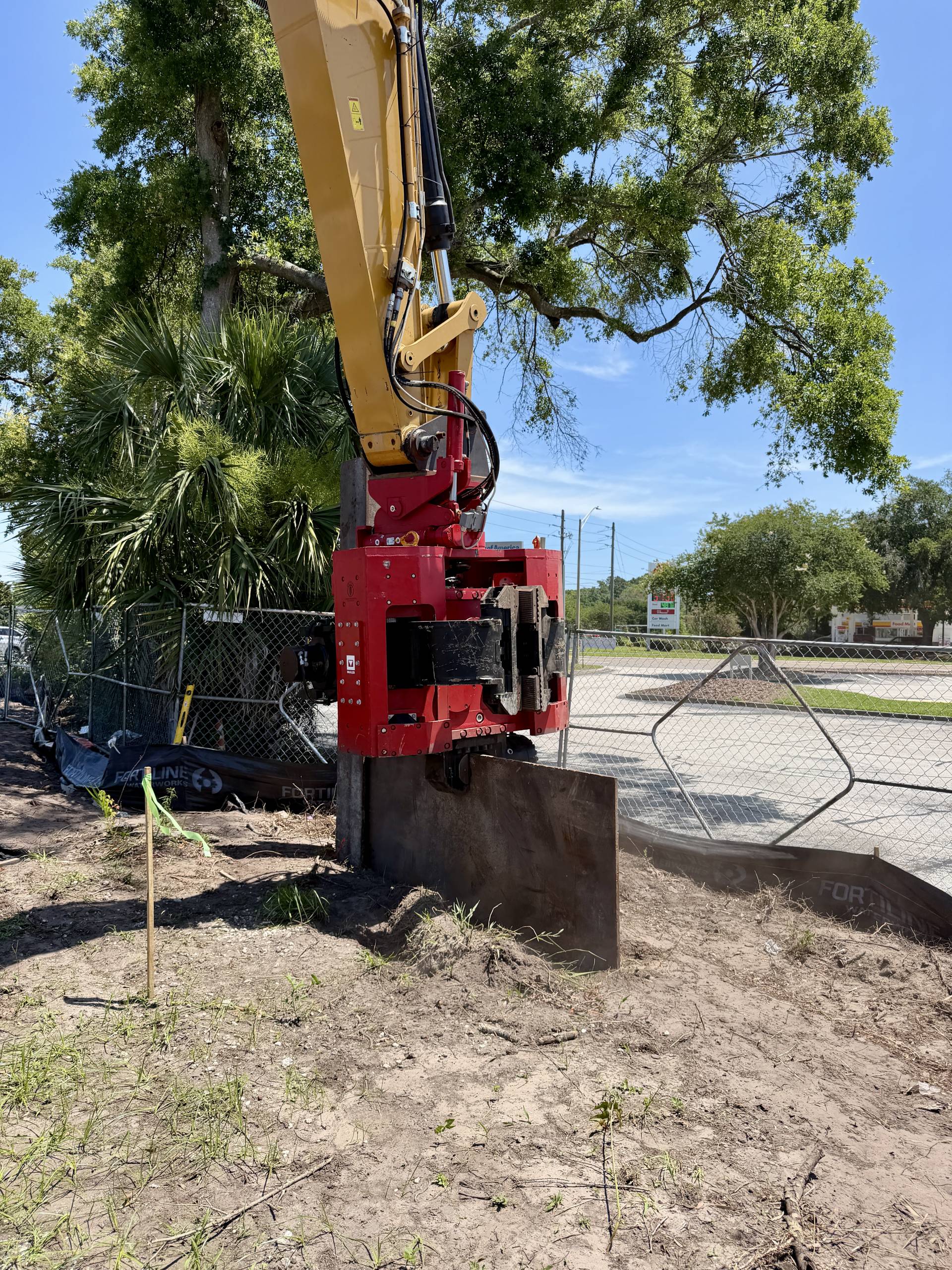

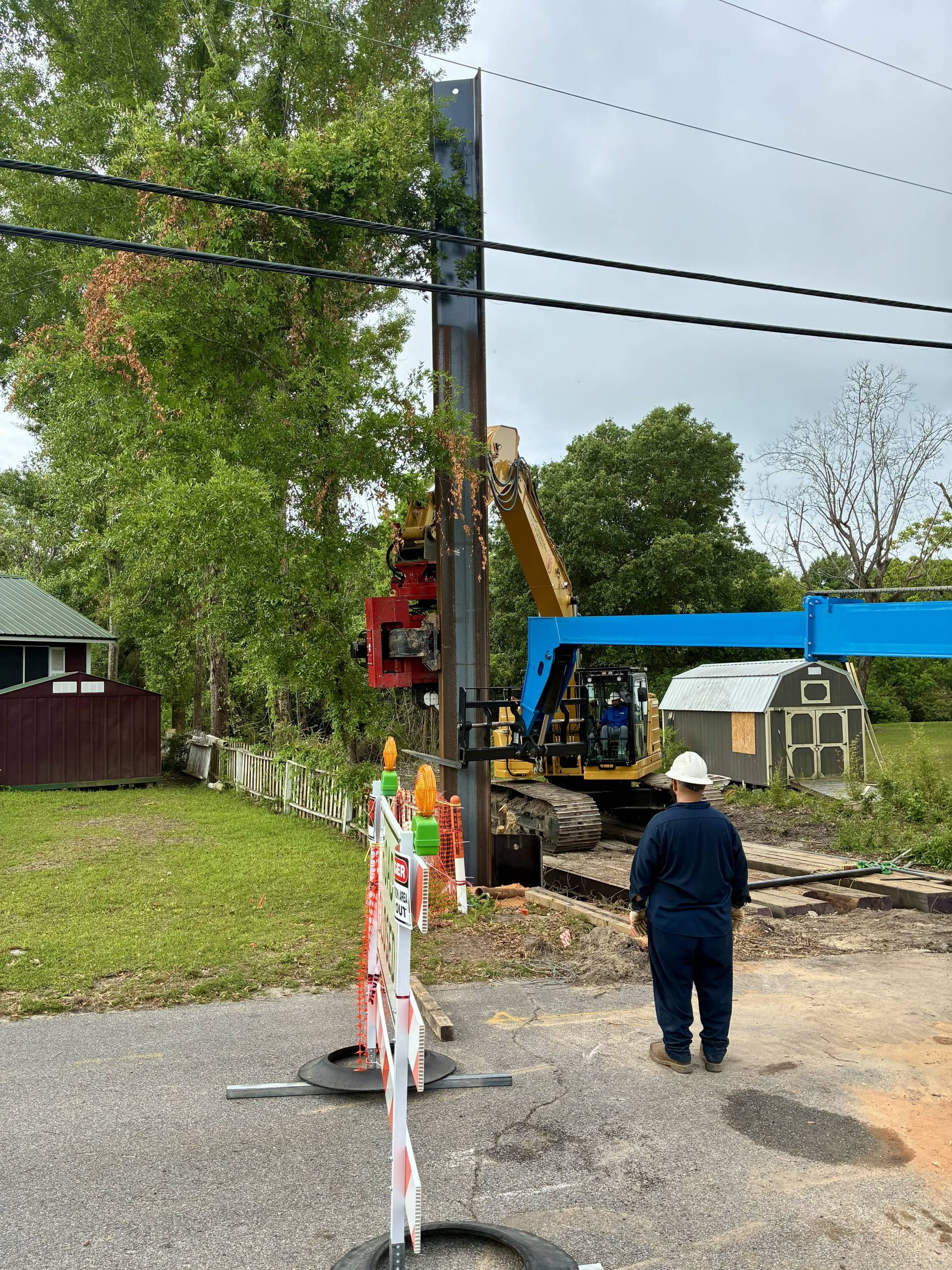

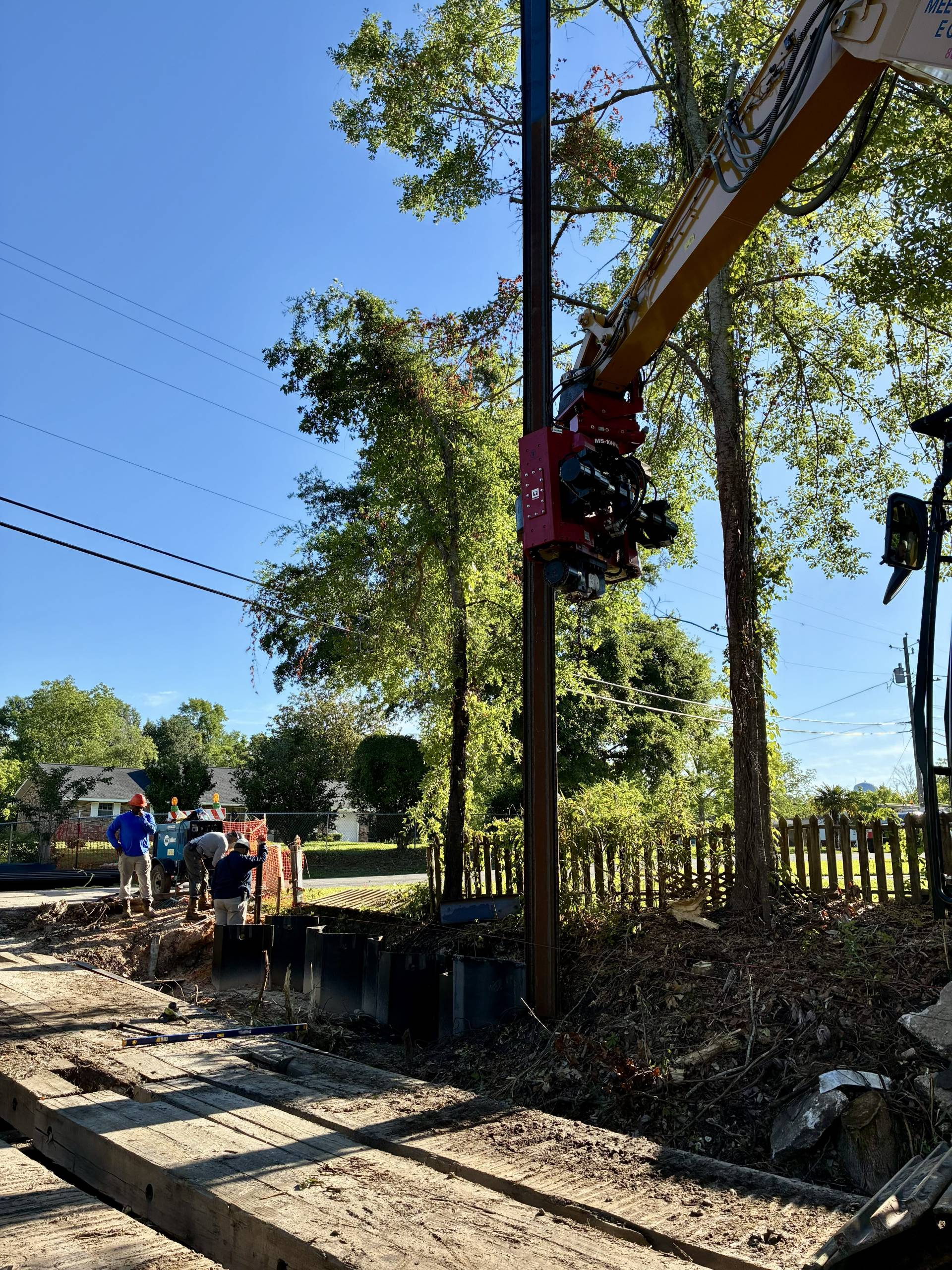

The side grip clamping system enables the excavator to pick, pitch, position, and drive sheet piles in a single operation, eliminating the need for a crane on many projects. This makes the HFBV SG series ideal for contractors working on shoring systems, seawalls, cofferdams, and temporary works where mobility, efficiency, and vibration control are critical.
Built with the proven durability of MÜLLER vibration technology, the HFBV SG hammers provide powerful driving performance while offering improved operational flexibility and reduced resonance during operation.

Key Features

  • Variable eccentric moment system for controlled start and stop of vibration
  • Reduced ground vibration during startup and shutdown

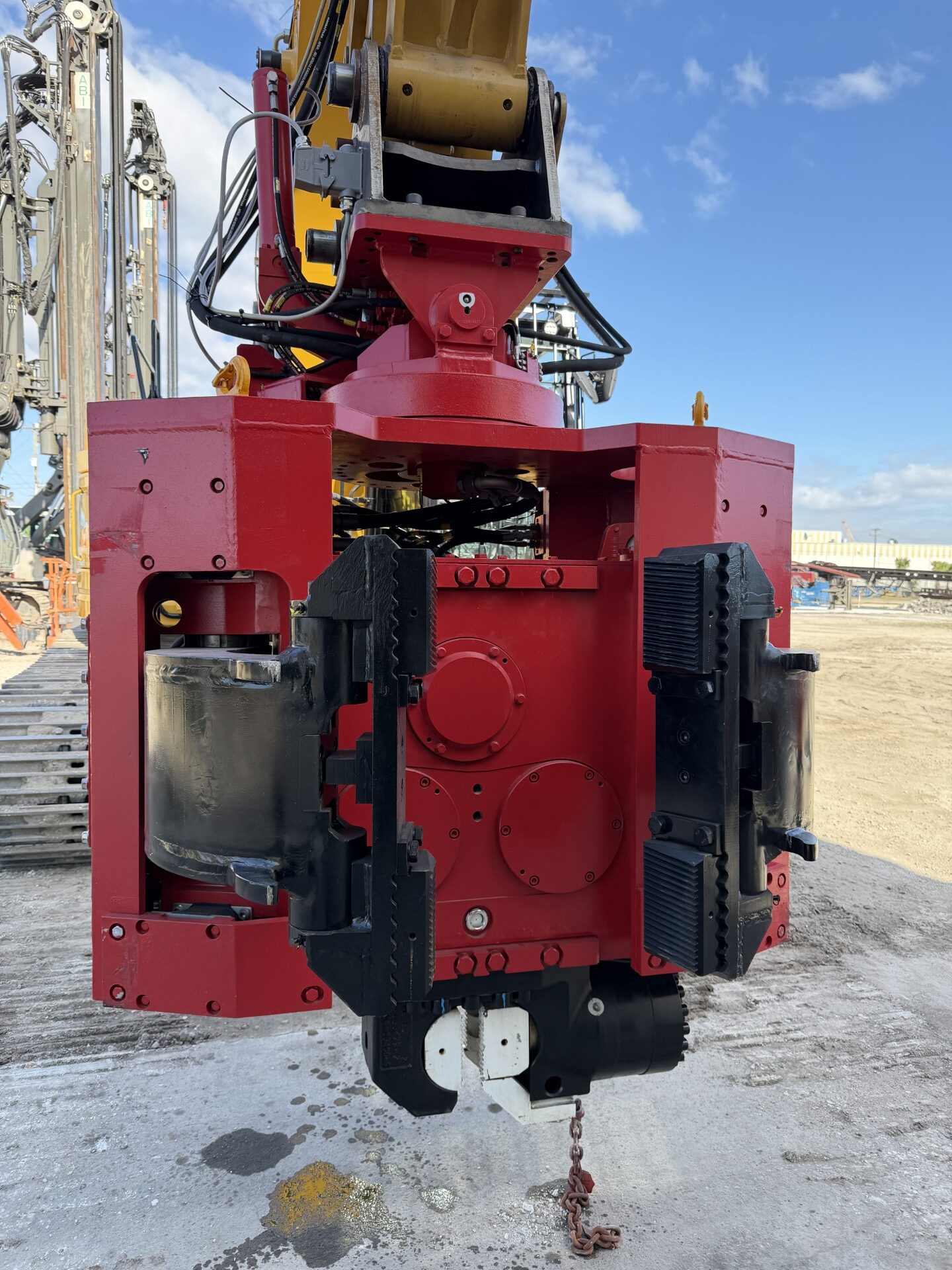

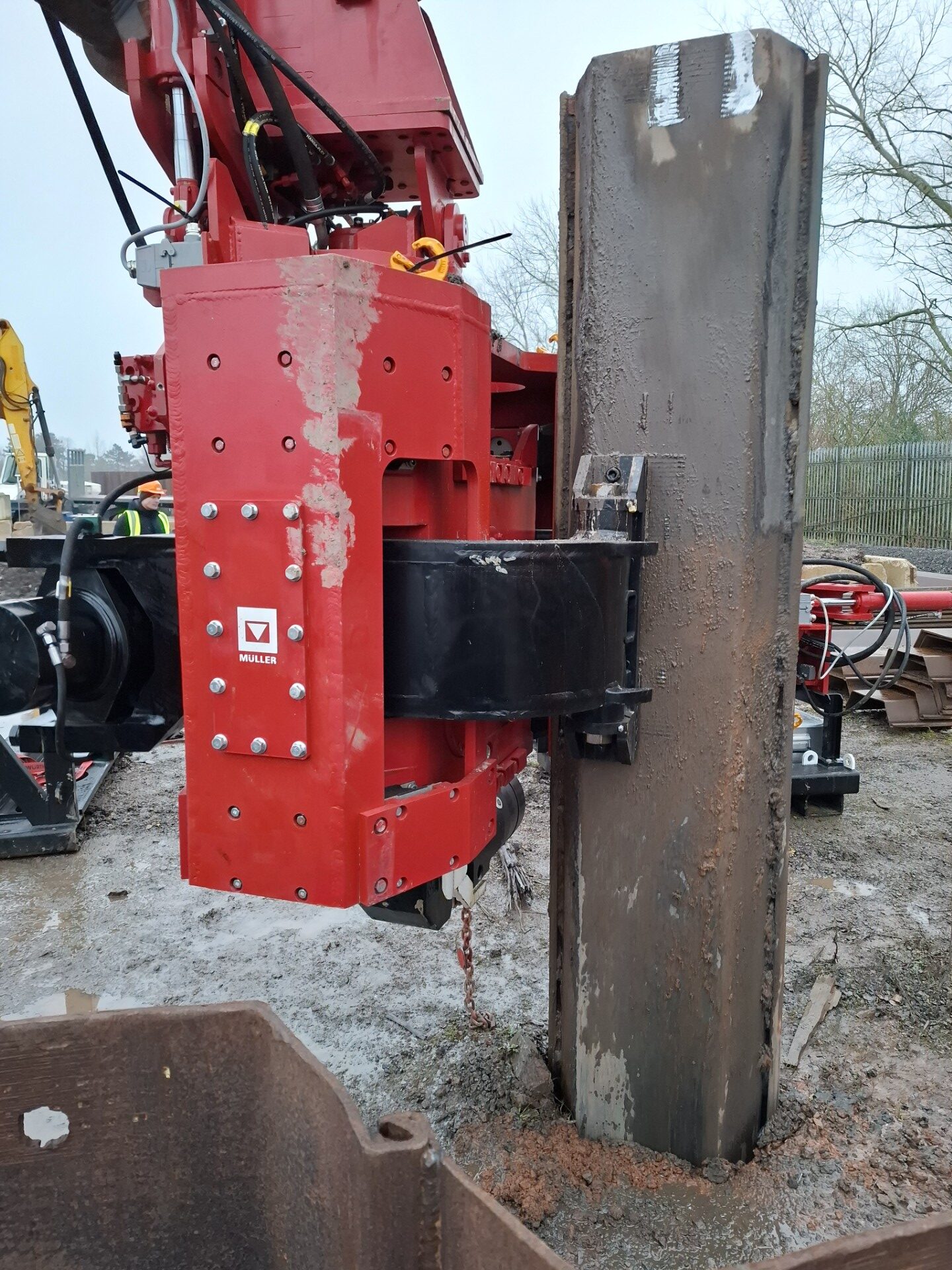

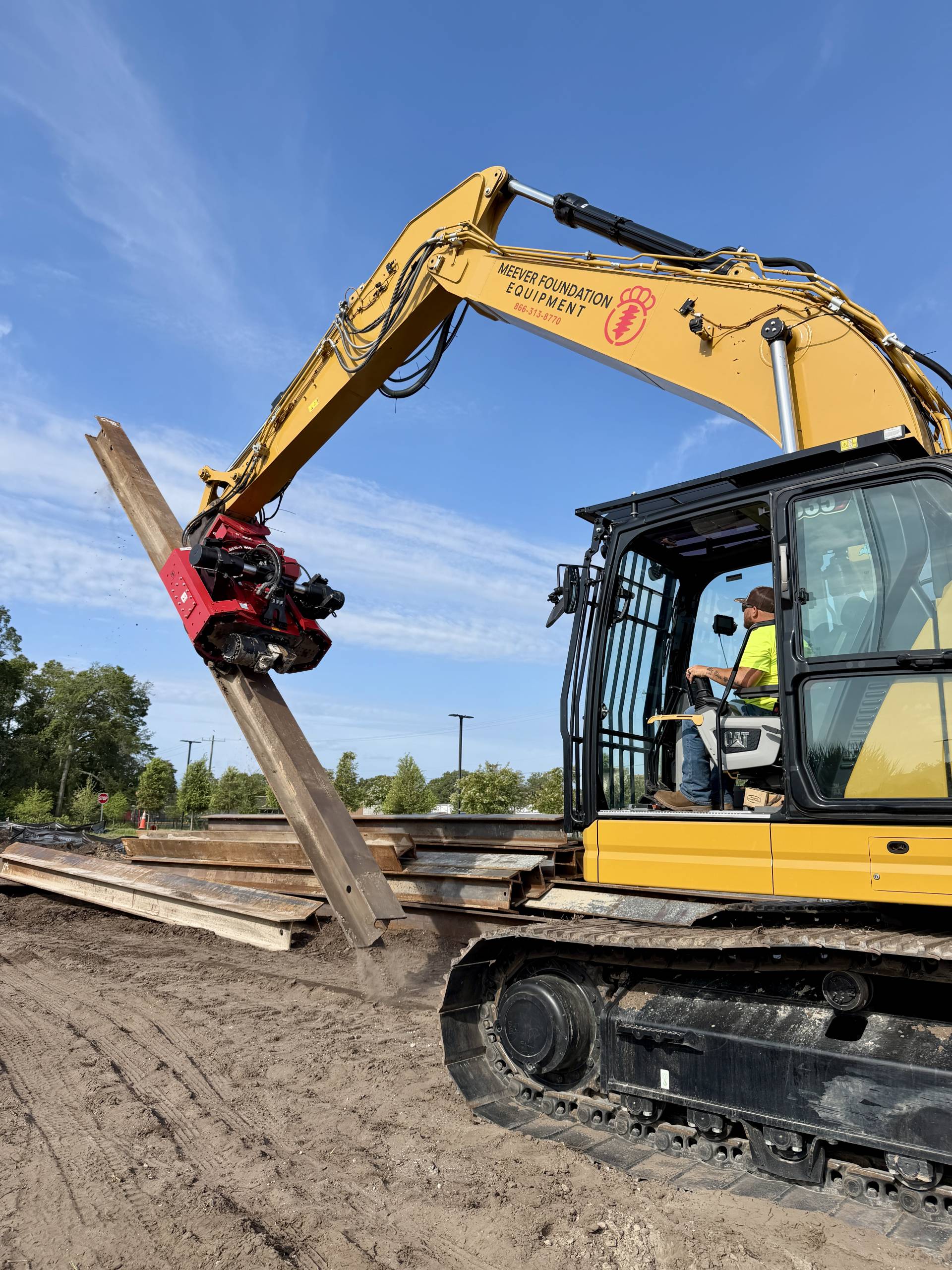

  • Side grip clamp allows picking and pitching piles directly from the ground
  • Excavator-mounted design eliminates the need for a crane on many jobs
  • High clamping force for secure handling of sheet piles and beams
  • Ideal for urban construction, marine work, and temporary shoring systems
  • Compact and highly maneuverable for confined jobsite conditions

Specification

MS-6 HFBV SGX

MS-8 HFBV SGX

MS-10 HFBV SGX

Centrifugal Force (US tons)

54.0

74.5

77.0

Eccentric Moment (in-lbs)

0 – 521

0 – 694

0 – 850

Frequency (Hz)

45

46

42

Speed (RPM)

2700

2750

2525

Pulling Force (US tons)

16.9

16.9

16.9

Pushing Force (US tons)

16.9

16.9

16.9

Total Weight (US tons)

3.96

4.44

4.46

Dynamic Weight (US tons)

2.45

2.93

2.94

Amplitude (in)

0.24

0.32

0.39

Power Consumption (HP)

169

232

247

Required Oil Flow (GPM)

57.1

78.4

83.5

Operating Pressure (PSI)

5075

5075

5075

Length (in)

64.2

64.2

64.2

Width (in)

54.8

54.8

54.7

Height (in)

78.1

78.2

78.1

Clamping Device

60/72

80/100

80/100

Side Clamping Device

72 SGX

72 SGX

72 SGX

Alternative Side Clamping Device

43 SG

43 SG

43 SG

Recommended Excavator Size (US tons)

30.9

33.1

33.1

Recommended Excavator Power (HP)

215

295

308
