INTEROC AN150

The Interoc AN150 combines compact design with powerful drilling performance in a highly versatile anchor drill rig. Built by Scandinavian Pile Driving (SPD) in Sweden, the AN150 is engineered for demanding ground engineering applications including anchors, micropiles, soil nails, and jet grouting.

Powered by a 280 hp Cummins Stage V / Tier 4 Final engine and supported by a high-capacity hydraulic system, the AN150 delivers impressive torque, feed force, and breakout capacity while maintaining excellent transport dimensions and jobsite maneuverability.

The machine supports both single and double Eurodrill rotary head configurations and can be equipped with hydraulic drifters to match a wide range of ground conditions. Designed for productivity, stability, and ease of transport, the AN150 sets a new standard for compact, high-performance anchor drilling solutions.

BRAND
SPD – INTEROC

MODEL
AN150

Power kW

209

Techniques

Rotary Drilling for Ground Anchors, Micropiles, Soil Nails, and Grouted Pile Systems

PDF Downloads

Compact, flexible and versatile

All advantages at a glance

  • High torque capacity up to 32 kNm (23,000 lbf)
  • 100 kN (22,480 lbf) feed and retraction force

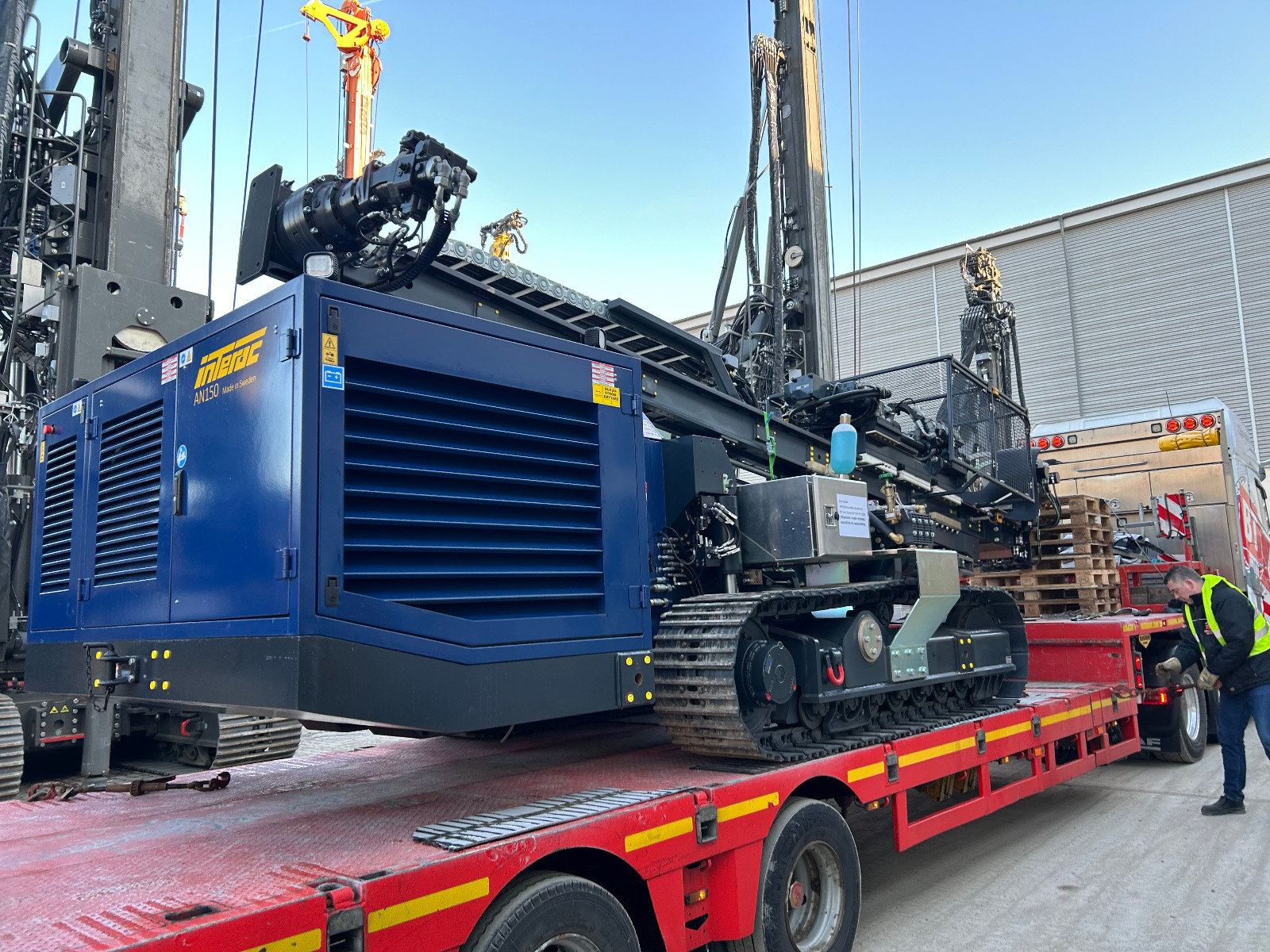

  • Compact transport

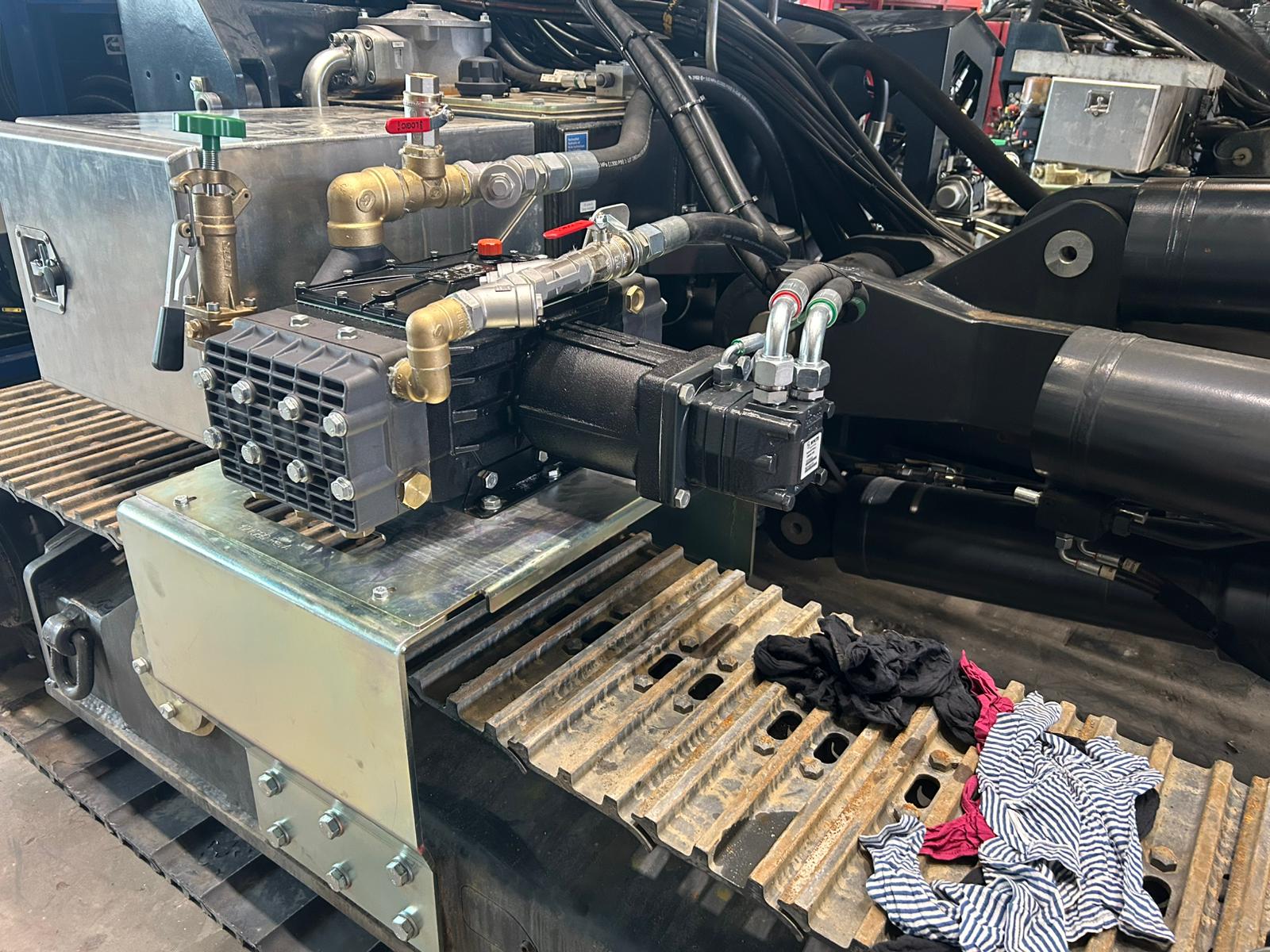

  • Onboard 202 l/min Water Pump & 30 l/min Pressure Washer
  • Stage V / Tier 4 Final compliant engine
  • HBC / SPD CAN-bus remote control (standard)
  • Compatible with Eurodrill RH & DH series heads

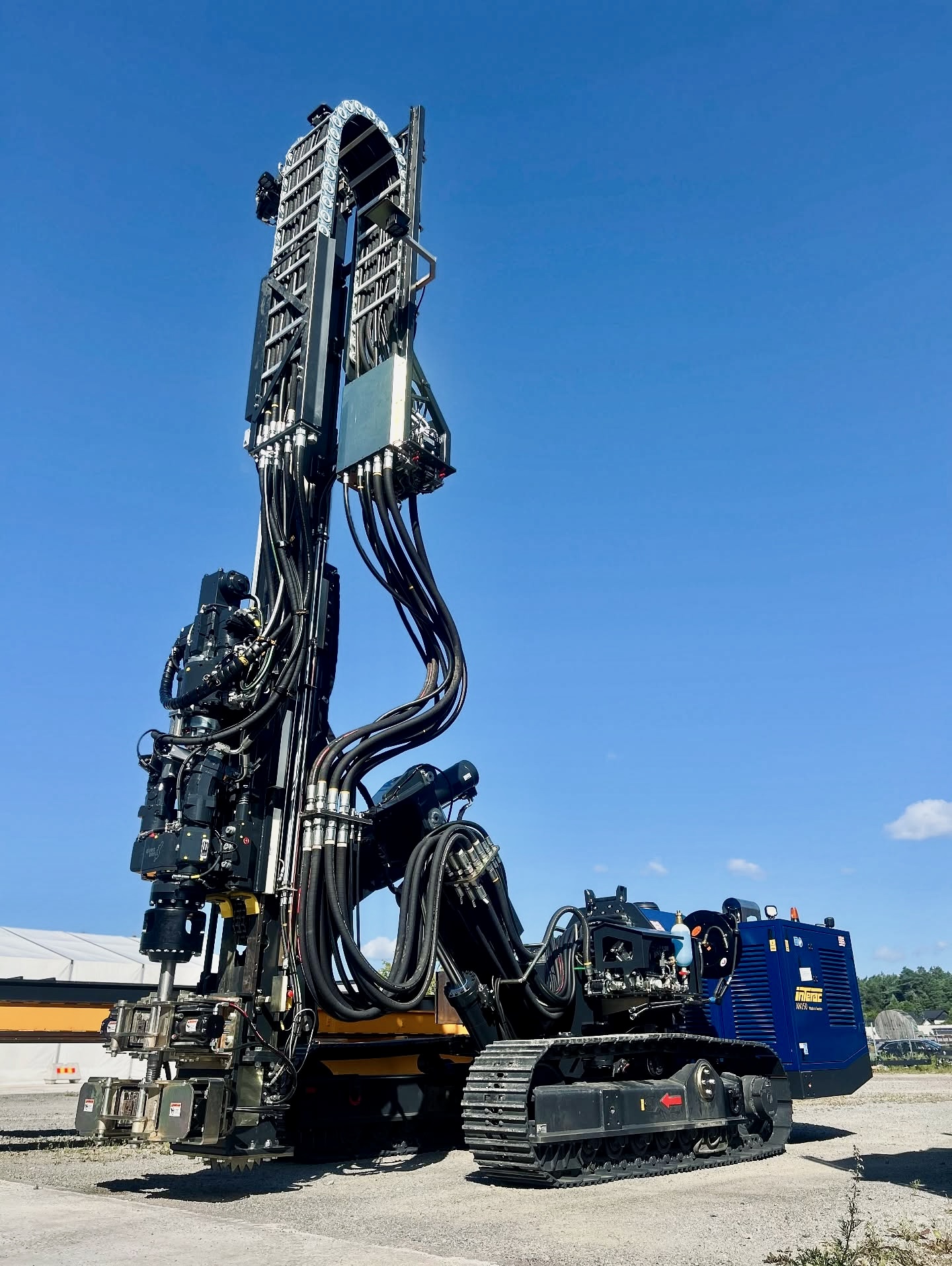

  • Optional single & double head configuration

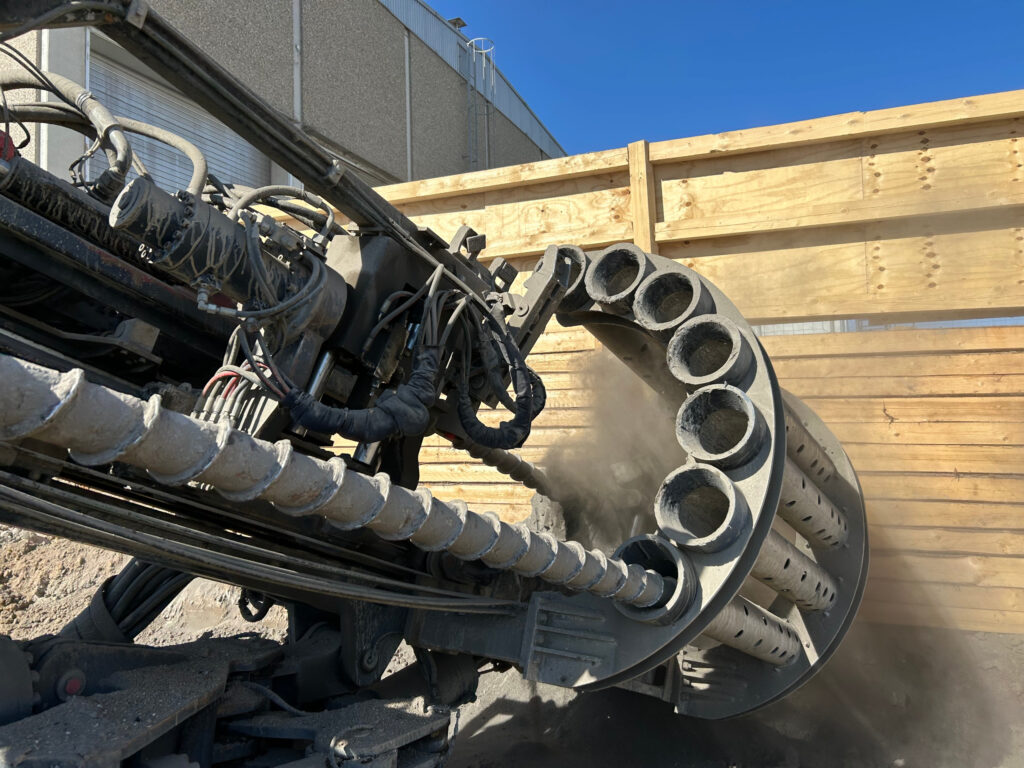

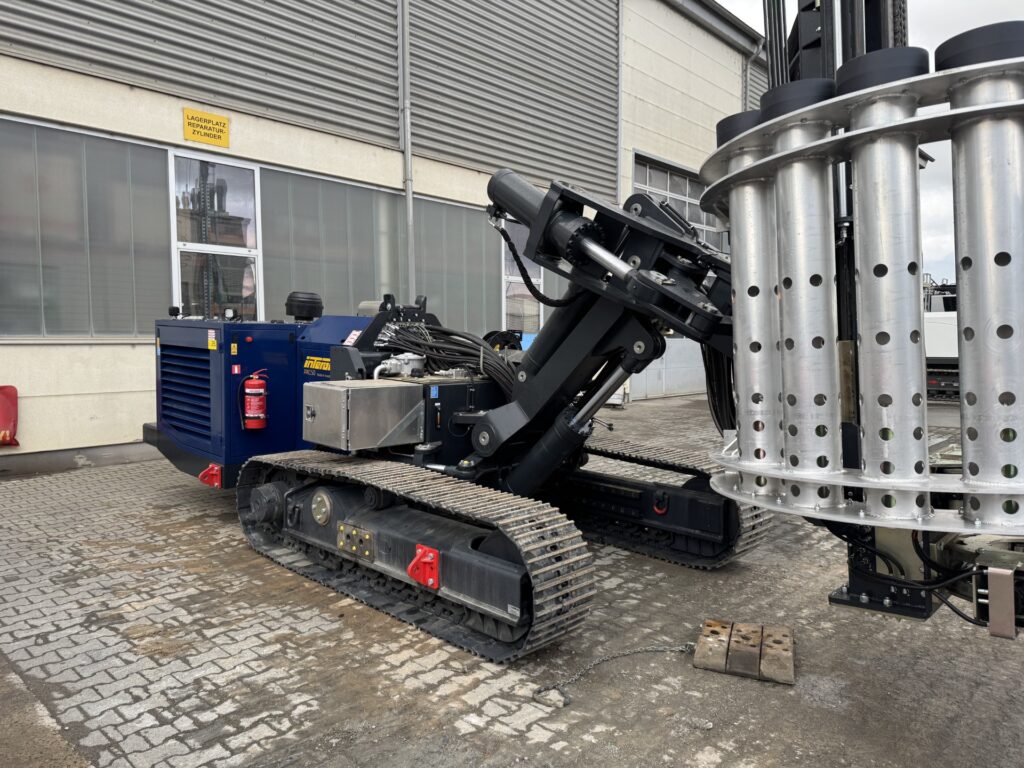

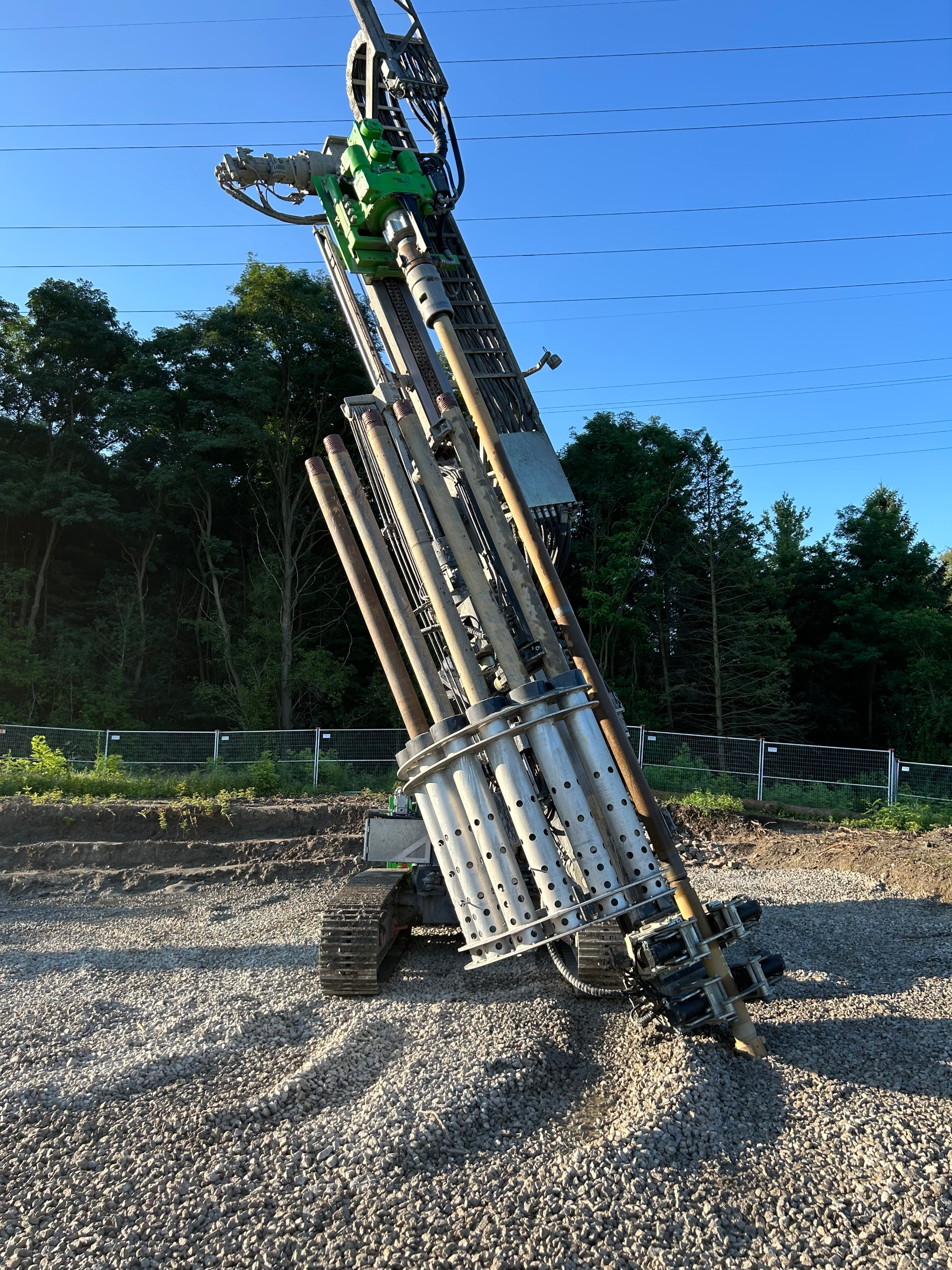

  • Arc rod magazines (KBM130 / KBM150)
  • Optional Palfinger crane & 20 kN (4,500 lbf) slewable winch
  • Low ground pressure for sensitive jobsites
  • 15° crawler pendulum range for uneven terrain
